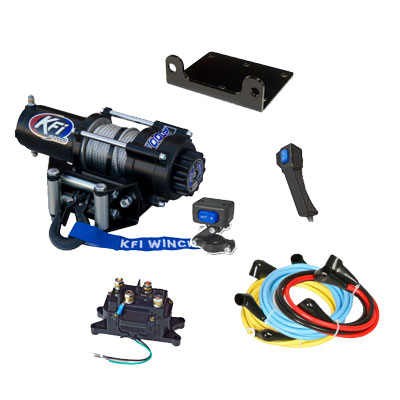

Model: U45w-R2 UTV Series (WIDE) Rated Line Pull: 4500 lbs. Motor: 12V DC, 1.7 hp Permanent Magnet Gear Ratio: 166:1 Gear/Transmission: All-metal Planetary Gear Drive Brake: Dynamic and Mechanical Clutch (free spooling): All Metal Cam Activated Freespool Drum Size: 2" (D) x 4.92" (L) Cable: 15/64" (D) x 52' (L) Fairlead: Multi-directional Roller Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch Winch Dimensions: 16.3" L x 4.55" D x 5" H Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) Mounting Bolt Pattern: 3.00" x 6.60" (4-Hole) Recommended Battery : 12 Amp/hour minimum Warranty: Limited 1 Year Winch Weight: 39 lbs. (complete kit)
