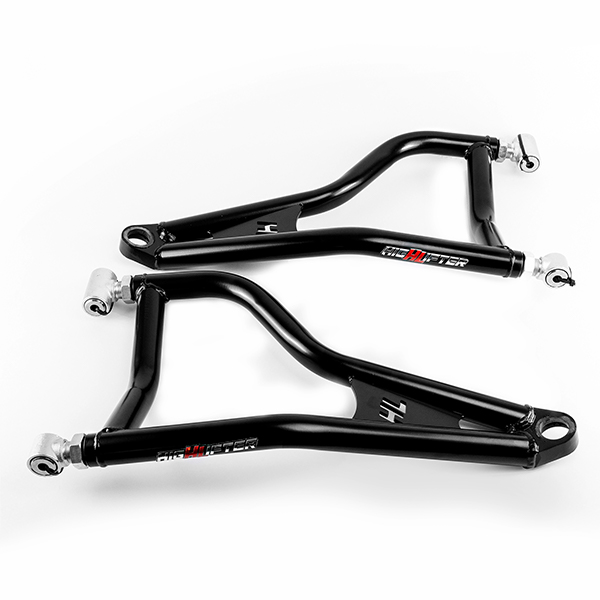

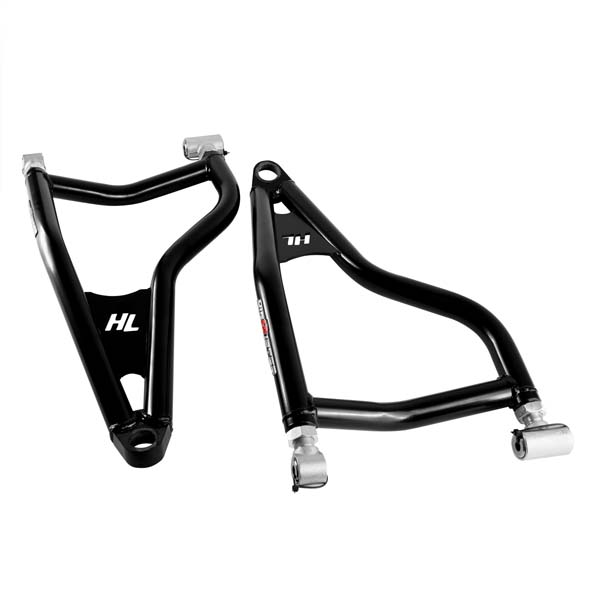

APEXX Front Forward Control Arms Polaris General 1000 XP

This item qualifies for Free Shipping
  • HDFFA-GEN1XP-*
  • Category: APEXX Control Arms
  • Brand: High Lifter
  • Summary: All new High Lifter APEXX Control Arms are stronger, adjustable and engineered for the most punishing terrain with 1.75" of additional ground clearance and raked forward 1.5". Push your machine to the limits and tackle obstacles you couldn't before! Note: This kit comes with a complete APEXX heavy duty tie rod kit.

All new High Lifter APEXX Control Arms are stronger, adjustable, and engineered for the most punishing terrain with 1.75" of additional ground clearance and raked forward 1.5". Push your Polaris General 1000 XP to the limits and tackle obstacles you couldn't before! Optional preinstalled ball joints.

Features

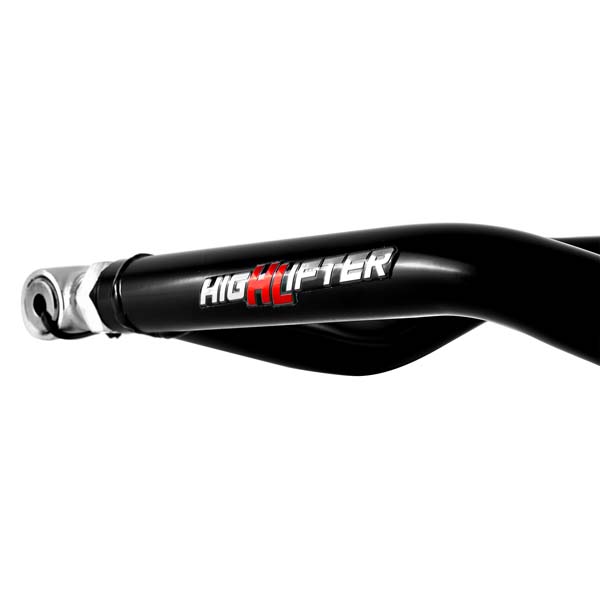

  • Adjustable heat-treated collars for camber adjustability with a 1” thread
  • Raked forward 1.5"
  • Over 3 degrees of camber adjustment in each direction
  • Heavy duty ball joint brackets to eliminate deformation issues, High Lifter HD Ball Joint Compatible
  • Ladder bar compatible with the 1.5” ID clamps
  • Extreme duty 1.5” x .120” DOM steel construction
  • Up to 1.75” of added ground clearance compared to OEM lower arm
  • Utilizes High Lifter’s new brake line clamps for securing brake lines to control arms
  • Optimized sway bar linkage angles
  • Includes upgraded heavy duty inner and outer tie rods with heim joints and alignment cones.
  • Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
  • Powder Coated

Heavy Duty Strength
High Lifter’s new heavy duty control arms add more support than factory. The upper control arms that come stock on a Polaris General 1000 XP are more robust than the stock lower control arms, leaving the lower arms more vulnerable to damage. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5” DOM with .120 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability
The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8” of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you’re adding to your ride. This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance

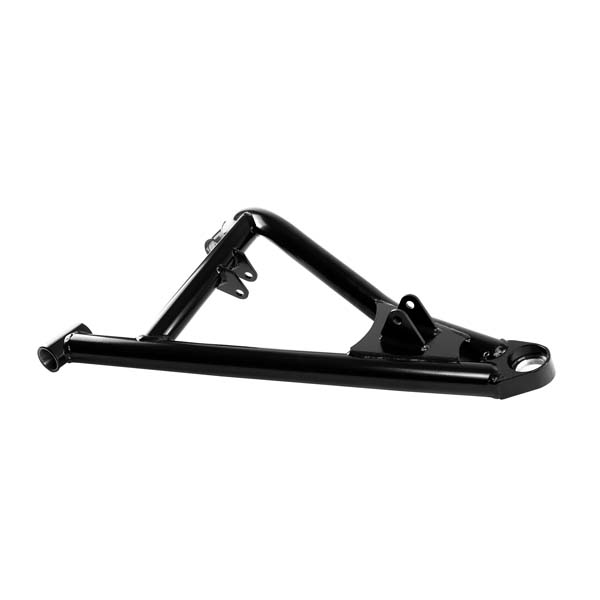

We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75” of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We’ve improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

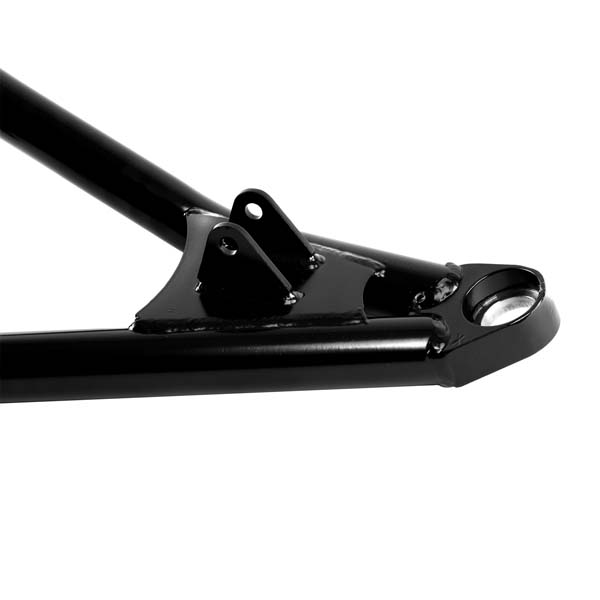

Reinforced Ball Joints Brackets
Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or “egging” of the mounting bracket.

Note: This kit comes with a complete APEXX heavy duty tie rod kit.

2022 Polaris General 1000 XP Deluxe
2022 Polaris General 1000 XP Deluxe Ride Command
2022 Polaris General 1000 XP Trailhead Edition
2022 Polaris General 1000 XP 4 Deluxe
2022 Polaris General 1000 XP 4 Deluxe Ride Command
2022 Polaris General 1000 XP 4 Trailhead Edition
2022 Polaris General 1000 XP Troy Lee Designs
2022 Polaris General 1000 XP 4 Troy Lee Designs
2023 Polaris General 1000 XP Sport
2023 Polaris General 1000 XP Premium
2023 Polaris General 1000 XP Ultimate
2023 Polaris General 1000 XP 4 Sport
2023 Polaris General 1000 XP 4 Premium
2023 Polaris General 1000 XP 4 Ultimate
2024 Polaris General 1000 XP Sport
2024 Polaris General 1000 XP Ultimate
2024 Polaris General 1000 XP Premium
2024 Polaris General 1000 XP 4 Ultimate
2024 Polaris General 1000 XP 4 Sport
2024 Polaris General 1000 XP 4 Premium
2021 Polaris General 1000 XP Deluxe
2021 Polaris General 1000 XP Pursuit Edition
2021 Polaris General 1000 XP 4 Deluxe
2021 Polaris General 1000 XP 4 Pursuit Edition
