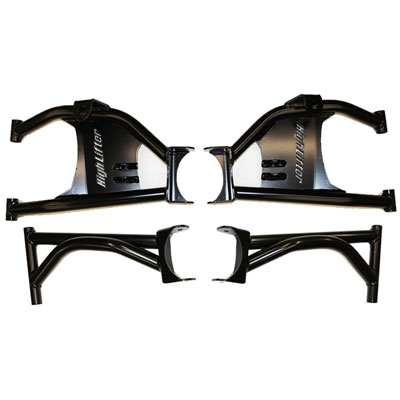

Rear Raked Upper & Lower Control Arm Polaris Scrambler/Sportsman

  • MCRRA-P1SCR*
  • Category: Control Arms
  • Brand: High Lifter
  • Summary: Whether you ride in deep mud or over rocky trails, the need for stronger control arms with added ground clearance is extremely important. Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter has solved your problem by designing tough control arms, twice as strong as your stock arms, with the added ground clearance you need for all terrains and bigger tires.
  • Weight: 35
  • Length: 26
  • Width: 15
  • Height: 7

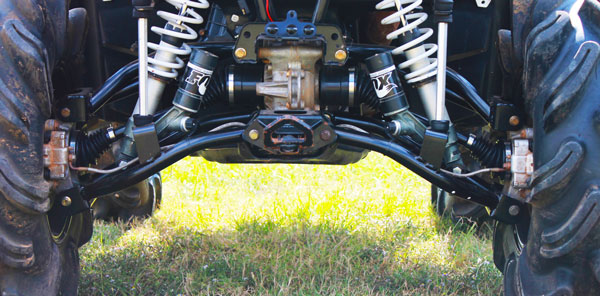

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don’t be fooled with too much arch that puts your axles at greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Always check for bearings, bushings, ball joints, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • 1.5" Rearward Rake over stock
  • 25% larger than average stock arms - Crafted from 1 1/4” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty

Tire Fitment:

These arms allow you to run 29” tires

Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter, and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

NOTE: If your ATV is equipped with rear arched control arms and sway bars from the factory, then you will need to remove the factory sway bar when you install the High Lifter Rear Racked control arm kit.  It cannot be used in conjunction with the High Lifter Rear Racked control arm kit.

2016 Polaris Sportsman 850
2016 Polaris Sportsman 850 SP
2016 Polaris Sportsman 1000 XP
2016 Polaris Sportsman 850 Touring SP
2016 Polaris Sportsman 1000 XP Touring
2016 Polaris Sportsman 850 High Lifter Edition
2016 Polaris Sportsman 1000 XP High Lifter Edition
2016 Polaris Scrambler 850
2016 Polaris Scrambler 1000 XP
2011 Polaris Sportsman 850 EPS
2010 Polaris Sportsman 850 EPS
2011 Polaris Sportsman 850
2010 Polaris Sportsman 850
2009 Polaris Sportsman 850
2011 Polaris Sportsman 850 X2 EFI
2011 Polaris Sportsman 550 XP EPS
2010 Polaris Sportsman 550 XP
2011 Polaris Sportsman 550 X2 EFI
2010 Polaris Sportsman 550 X2 EFI
2010 Polaris Sportsman 550 EPS
2011 Polaris Sportsman 550
2009 Polaris Sportsman 550 XP
2012 Polaris Sportsman 850 EPS
2012 Polaris Sportsman 850
2012 Polaris Sportsman 550 X2 EFI
2012 Polaris Sportsman 550 EPS
2012 Polaris Sportsman 550
2013 Polaris Sportsman 850
2013 Polaris Sportsman 850 EPS
2013 Polaris Sportsman 550
2013 Polaris Sportsman 550 EPS
2013 Polaris Scrambler 850
2013 Polaris Scrambler 850 EPS
2014 Polaris Sportsman 550 EPS
2014 Polaris Sportsman 850
2014 Polaris Scrambler 850
2014 Polaris Sportsman 850 Touring EPS
2014 Polaris Scrambler 1000 XP EPS
2015 Polaris Sportsman 850
2015 Polaris Sportsman 850 SP
2015 Polaris Sportsman 1000 XP
2015 Polaris Scrambler 850
2015 Polaris Scrambler 1000 XP
2015 Polaris Sportsman 850 Touring SP
2015 Polaris Sportsman 1000 XP Touring
2017 Polaris Scrambler 1000 XP EPS
2017 Polaris Scrambler 850
2017 Polaris Sportsman 1000 XP
2017 Polaris Sportsman 1000 XP High Lifter Edition
2017 Polaris Sportsman 1000 XP Touring
2017 Polaris Sportsman 850
2017 Polaris Sportsman 850 High Lifter Edition
2017 Polaris Sportsman 850 SP
2017 Polaris Sportsman 850 SP EPS
2017 Polaris Sportsman 850 Touring SP EPS
2018 Polaris Sportsman 850 Touring SP
2018 Polaris Sportsman 1000 XP
2018 Polaris Sportsman 1000 XP Touring
2018 Polaris Sportsman 850 High Lifter Edition
2018 Polaris Sportsman 1000 XP High Lifter Edition
2018 Polaris Scrambler 850
2018 Polaris Scrambler 1000 XP
2019 Polaris Sportsman 850 SP
2019 Polaris Sportsman 850 Touring SP
2019 Polaris Sportsman 1000 XP
2019 Polaris Sportsman 1000 XP Touring
2019 Polaris Sportsman 850 High Lifter Edition
2019 Polaris Sportsman 1000 XP High Lifter Edition
2019 Polaris Scrambler 850
2019 Polaris Scrambler 1000 XP
2020 Polaris Sportsman 850
2020 Polaris Sportsman 850 Premium
2020 Polaris Sportsman 850 Touring
2020 Polaris Sportsman 1000 XP Trail Package
2020 Polaris Sportsman 1000 XP Hunter Edition
2020 Polaris Sportsman 1000 XP Touring
2020 Polaris Scrambler 850
2021 Polaris Sportsman 850
2021 Polaris Sportsman 850 Premium
2021 Polaris Sportsman 850 Touring
2021 Polaris Sportsman 1000 XP
2021 Polaris Sportsman 1000 XP Touring
2021 Polaris Sportsman 850 Trail
2021 Polaris Sportsman 1000 XP Trail
2020 Polaris Sportsman 1000 XP Premium

Product Ratings and Reviews

Add a Review

5.0 out of 5 stars
  • Sunday, September 5, 2021
  • Sheldon Bragdon
These arms game me plenty of room and clearance under my 2021 Sportsman XP 1000 Trail. I swapped the front and rear with highlifter arched A arms and added the highlifter 2"lift. Now I put on Sunf A033 Power tires that are 29x9x14 on front and 29x11x14 on the back and are true to size. This gives me 15" clearance on the front and 15.5 on the back and still have the soft suspension I love. The arms look great l, are way stronger and thicker than the OEM ones. Thanks Highlifter! P.S. my emblems did not want to stick so I used some emblem adhesive. So I would not lose them in a mud hole
  • Thursday, January 21, 2021
  • Jon
Fit like a glove. Thanks High Lifter!
  • Monday, October 5, 2020
  • Dan
Perfectly engineered for fitment. Easy install and cleared 30" Berserker tires on 8" wheels 4" offset with 1.5" wheel spacers and 2.00" HL lift kit. 2019 Polaris Sportsman 850SP.
  • Tuesday, September 22, 2020
  • Thomas Ainsworth
I have a 2020 Sportsman 850 SP, these A-Arms fit perfectly and have me the rake I want. The ride is still super smooth and it appears they gave me a little more lift than stock.
  • Sunday, August 23, 2020
  • Paul
Great fit, easy install. Got these to clear thicker axles on my sportsman, and they fixed my issue.
