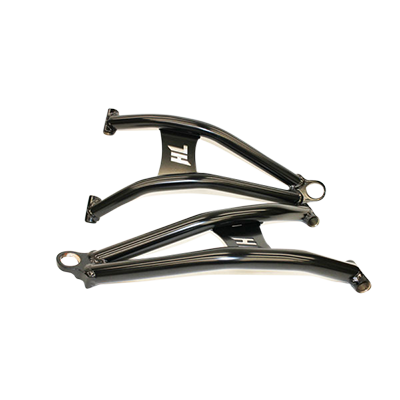

Front Lower Control Arms Polaris Sportsman 550/850/1000, Scrambler 850/1000

  • MCFLA-P1SCR-*
  • Category: High Lifter Max Clearance Control Arms
  • Brand: High Lifter
  • Summary: Whether you ride in deep mud or over rocky trails, the need for stronger control arms with added ground clearance is extremely important. Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter has solved your problem by designing tough control arms, twice as strong as your stock arms, with the added ground clearance you need for all terrains and bigger tires.
  • Weight: 16.2
  • Length: 26
  • Width: 15
  • Height: 7

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Installation is made easy with our step by step and multi-image instructions. During installation, you can use stock bushings and ball joints for easy installation. Even better, High Lifter will install your ball joints before shipping. (See our control arms with preinstalled ball joints.)

Always check for bearings, bushings, ball joints, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • Larger than average stock arms - Crafted from 1 1/16” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms - .120” wall thickness
  • Dual bend design
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty
2016 Polaris Sportsman 850 SP
2016 Polaris Sportsman 1000 XP
2016 Polaris Sportsman 850 Touring SP
2016 Polaris Sportsman 1000 XP Touring
2016 Polaris Scrambler 850
2016 Polaris Scrambler 1000 XP
2011 Polaris Sportsman 850 EPS
2010 Polaris Sportsman 850 EPS
2011 Polaris Sportsman 850
2010 Polaris Sportsman 850
2009 Polaris Sportsman 850
2011 Polaris Sportsman 850 X2 EFI
2011 Polaris Sportsman 850 Touring EPS
2011 Polaris Sportsman 550 XP EPS
2010 Polaris Sportsman 550 XP
2011 Polaris Sportsman 550 X2 EFI
2010 Polaris Sportsman 550 X2 EFI
2011 Polaris Sportsman 550 Touring EPS
2010 Polaris Sportsman 550 EPS
2011 Polaris Sportsman 550
2009 Polaris Sportsman 550 XP
2012 Polaris Sportsman 850 EPS
2012 Polaris Sportsman 850
2012 Polaris Sportsman 850 Touring EPS
2012 Polaris Sportsman 550 Touring EPS
2012 Polaris Sportsman 550 X2 EFI
2012 Polaris Sportsman 550 EPS
2012 Polaris Sportsman 550
2013 Polaris Sportsman 850
2013 Polaris Sportsman 850 EPS
2013 Polaris Sportsman 550
2013 Polaris Sportsman 550 EPS
2013 Polaris Sportsman 850 Touring EPS
2013 Polaris Sportsman 550 Touring EPS
2013 Polaris Scrambler 850
2013 Polaris Scrambler 850 EPS
2013 Polaris Sportsman 550 X2 EFI
2014 Polaris Sportsman 550 EPS
2014 Polaris Sportsman 850
2014 Polaris Scrambler 850
2014 Polaris Sportsman 850 Touring EPS
2014 Polaris Sportsman 550 Touring
2014 Polaris Sportsman 550 X2
2014 Polaris Scrambler 1000 XP EPS
2015 Polaris Sportsman 850 SP
2015 Polaris Sportsman 1000 XP
2015 Polaris Scrambler 850
2015 Polaris Scrambler 1000 XP
2015 Polaris Sportsman 850 Touring SP
2017 Polaris Scrambler 1000 XP EPS
2017 Polaris Scrambler 850
2017 Polaris Sportsman 1000 XP
2017 Polaris Sportsman 1000 XP Touring
2017 Polaris Sportsman 850
2017 Polaris Sportsman 850 SP
2017 Polaris Sportsman 850 SP EPS
2017 Polaris Sportsman 850 Touring SP EPS
2018 Polaris Sportsman 850
2018 Polaris Sportsman 850 Touring SP
2018 Polaris Sportsman 1000 XP
2018 Polaris Sportsman 1000 XP Touring
2018 Polaris Scrambler 850
2018 Polaris Scrambler 1000 XP
2019 Polaris Sportsman 850
2019 Polaris Sportsman 850 Touring SP
2019 Polaris Sportsman 1000 XP
2019 Polaris Sportsman 1000 XP Touring
2019 Polaris Scrambler 850
2019 Polaris Scrambler 1000 XP
