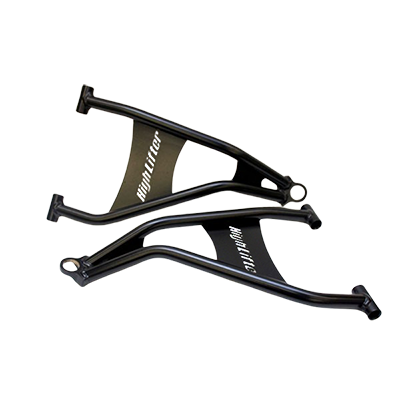

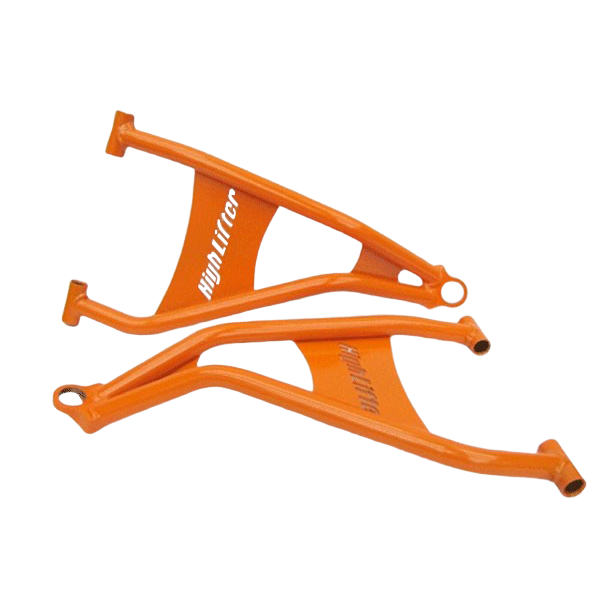

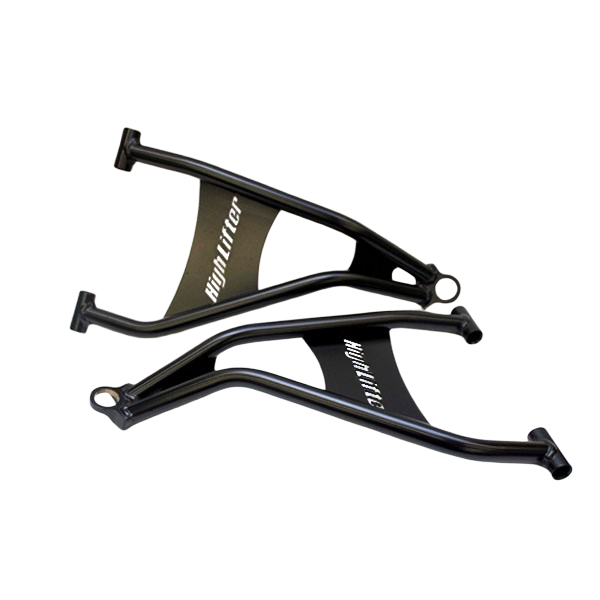

Front Lower Control Arms for Polaris Ranger 900

  • MCFLA-RNG9-*
  • Category: High Lifter Products Control Arms
  • Brand: High Lifter
  • Summary: Whether you ride in deep mud or over rocky trails, the need for stronger control arms with added ground clearance is extremely important. Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter has solved your problem by designing tough control arms, twice as strong as your stock arms, with the added ground clearance you need for all terrains and bigger tires.
  • Weight: 16.89
  • Length: 26
  • Width: 15
  • Height: 7

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Installation is made easy with our step by step and multi-image instructions. During installation, you can use stock bushings and ball joints for easy installation. Even better, High Lifter will install your ball joints before shipping. (See our control arms with preinstalled ball joints.)

Always check for bearings, bushings, ball joints, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • Larger than average stock arms - Crafted from 1 1/8” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms - .120” wall thickness
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty



NOTES: Kit does not fit Strut models.

2016 Polaris Ranger 570 Full-Size XP
2016 Polaris Ranger 900 XP
2016 Polaris Ranger 1000 DSL
2016 Polaris Ranger 800 6x6
2016 Polaris Ranger 570-4 Full-Size Crew
2016 Polaris Ranger 570-6 Full-Size Crew
2016 Polaris Ranger 900-5 Crew EPS
2016 Polaris Ranger 900-6 Crew EPS
2016 Polaris Ranger 1000 DSL Crew
2013 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 570 Full-Size
2015 Polaris Ranger 570 Crew Full-Size
2015 Polaris Ranger 570 Crew Full-Size EPS
2015 Polaris Ranger 900 XP
2015 Polaris Ranger 900 XP EPS
2015 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 900 XP Crew EPS
2015 Polaris Ranger 1000 DSL
2015 Polaris Ranger 1000 DSL Crew
2017 Polaris Ranger 1000 XP
2017 Polaris Ranger 1000 XP Crew
2017 Polaris Ranger 1000 XP Crew EPS
2017 Polaris Ranger 1000 XP EPS
2017 Polaris Ranger 1000 XP SE
2017 Polaris Ranger 900 XP
2017 Polaris Ranger 900 Crew
2017 Polaris Ranger 900 Crew EPS
2017 Polaris Ranger 900 EPS
2017 Polaris Ranger DSL
2017 Polaris Ranger DSL Crew
2017 Polaris Ranger 1000 XP Northstar
2018 Polaris Ranger DSL
2018 Polaris Ranger DSL Crew
2018 Polaris Ranger 900 XP
2018 Polaris Ranger 900 Crew
2018 Polaris Ranger 1000 XP Crew
2018 Polaris Ranger 1000 XP Northstar Crew
2019 Polaris Ranger 900 XP
2019 Polaris Ranger 900 Crew
