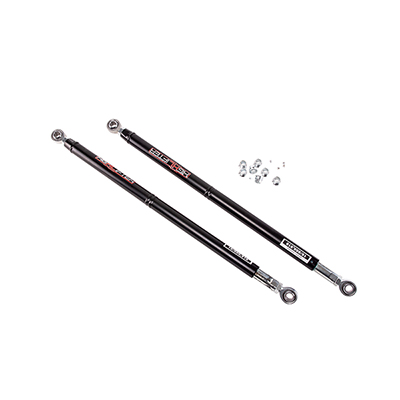

Front Control Arm Link Kit Polaris Ranger 900

  • CAL-F-RNG9*
  • Category: Control Arms Link Kit
  • Brand: High Lifter
  • Summary: Want to stop destroying your control arms? If so, this product is for YOU. By installing our High Lifter Control Arm Link Kit, you will increase your protection against front impacts and potentially save yourself from a ruined weekend trip and/or a costly repair.
  • Weight: 57
  • Length: 18
  • Width: 4
  • Height: 4

Want to stop destroying your control arms? If so, this product is for YOU.

Here at High Lifter, we show our test vehicles no mercy as we plow through some of the deepest, peanut butter-like mud holes, over rocky mountain passes, and pound out new trails through dense woods. In doing so, we quickly discovered that even the strongest control arm can fall victim to a bend or break that may occur if your ATV or UTV wheels take too hard of a front impact. By design, a control arm or a-arm’s strength is greatest against lateral (left to right) force, and weakest against longitudinal forces (front and rear). Therefore, many control arms are bent or broken when the wheel(s) strikes something that causes an abrupt decrease/stop to your forward momentum. This could be a log, a rock, descending from a jump or fall, or even from being winched out of thick mud. A bent or broken control arm has ruined many, many fun planned weekend rides and vacations. By installing the High Lifter Control Arm Link Kit, you have now increased your protection against those front impacts and potentially saved yourself from a ruined weekend trip and/or a costly repair.

For this new link to function with the control arms without causing binding or other negative effects in suspension travel, the link must pivot on the same axis as the control arm.  At High Lifter, we take the time to precisely calculate the appropriate pivot axis for each application to maximize performance and strength of our control arm links.  It’s the perfect addition to our heavy-duty control arm kits to build an incredibly durable suspension system.  Our team of engineers and fabricators have developed and patented the first full length adjustable control arm link which boasts 10 inches of adjustability to fit nearly every application.  Choose superior engineering and design for your build by choosing High Lifter.

Product Highlights:

  1. Bars have up to 10” of length adjustability for a semi-universal fitment on most models
  2. Clamp collars* for either 1-1/4” or 1-1/2” for use on control arms that use DOM style tubing.
  3. ¼” mounting plates for added strength (Twice the strength of similar competing products)
  4. 3-Piece Heim joints crafted from heat-treated chromoly for superior strength
  5. Templates for easy trimming of factory skid plates for most models.
  6. All mounting hardware is included
  7. Easy bolt-on design only requiring minor drilling.
  8. Powder coated for durability
  9. First in industry patent pending adjustable bars. (Patent Pending 16/858,918)

*Please select correct clamp size to fit your control arms using the drop down option.

READ THE REQUIREMENTS FOR INSTALLATION BEFORE YOU INSTALL:

  1. This kit requires 1-1/4” or 1-1/2" DOM tubing to be used at the front control arm.
  2. All Polaris Ranger High Lifter Editions and Ranger Back Country models require 3” or greater lift kit.
  3. All standard Polaris Rangers with factory control arms that are not arched will require a 3” or greater lift and forward arched arms that also include a steering stop.
  4. This kit will work with all Big Lift Kits that are 3” or greater.
  5. Steering stops are a requirement, no matter what lift kit, big lift kit, or forward arms are installed on the SXS.
2016 Polaris Ranger 900 XP
2016 Polaris Ranger 900-5 Crew EPS
2016 Polaris Ranger 900-6 Crew EPS
2013 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP
2014 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 900 XP
2015 Polaris Ranger 900 XP EPS
2015 Polaris Ranger 900 XP Crew
2015 Polaris Ranger 900 XP Crew EPS
2017 Polaris Ranger 1000 XP
2017 Polaris Ranger 1000 XP Crew
2017 Polaris Ranger 1000 XP Crew EPS
2017 Polaris Ranger 1000 XP EPS
2017 Polaris Ranger 1000 XP SE
2017 Polaris Ranger 900 XP
2017 Polaris Ranger 900 Crew
2017 Polaris Ranger 900 Crew EPS
2017 Polaris Ranger 900 EPS
2017 Polaris Ranger 1000 XP Northstar
2018 Polaris Ranger 900 XP
2018 Polaris Ranger 900 Crew
2018 Polaris Ranger 1000 XP Crew
2018 Polaris Ranger 1000 XP Northstar Crew
2017 Polaris Ranger 1000 XP Northstar Crew
2019 Polaris Ranger 900 XP
2019 Polaris Ranger 900 Crew
