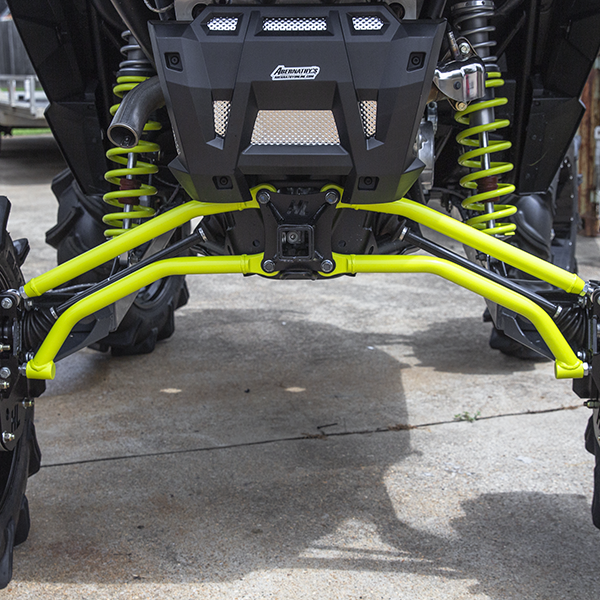

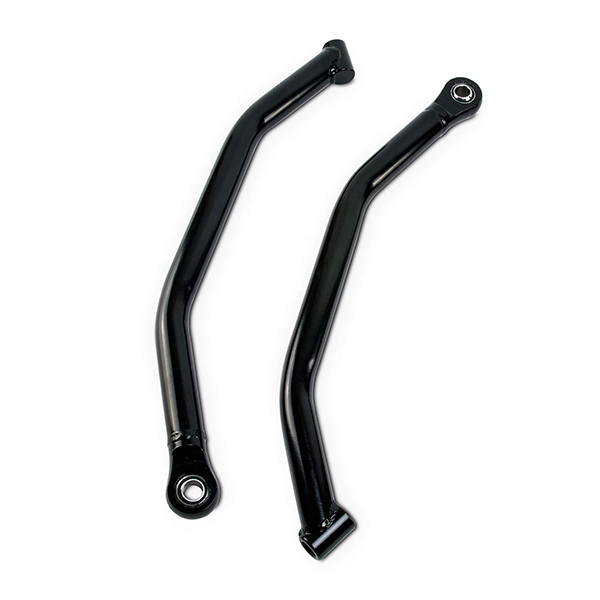

APEXX Lower Arched Radius Bar Kit Polaris RZR XP 1000 Spherical Bearing

This item qualifies for Free Shipping
  • HDRB-RZR1-*-SBI
  • Category: Radius Bars
  • Brand: High Lifter
  • Summary: Stock radius bars don't cut it! A bent radius bar will quickly lead to breakage or worse, being stranded. High Lifter radius bars are 50% larger than stock and maximize ground clearance with extreme arches to give you the most clearance possible while still protecting your axle.
  • Weight: 15
  • Length: 24
  • Width: 4
  • Height: 4

High Lifter improved the radius bar design even further with our APEXX Suspension Line. In addition to durable, adjustable heim joints and spherical bearings, these radius bars are made with thicker material than stock. We also added a second bend in the bar to increase the arch, gaining an additional 1.75" of ground clearance over the factory arch.

High Lifter Radius Bars can be differentiated from other aftermarket radius bars by the polyurethane bushings we use. They are firmer than rubber and should last the life of the vehicle. The enhanced performance helps keep the radius bar stable and aims to eliminate excess movement. By greatly reducing movement, the suspension is more efficient and responsive to the driver.

Installation and maintenance are made easy with adjustable length and can be serviced with readily available parts. The simple bolt-on kit features heim joints for easy camber adjustment and spherical bearings for rugged durability. High Lifter's Radius Bars will give you the strength and clearance needed for peace of mind when riding.

Always check for bearing and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • Crafted from extreme duty 1.5" x .188" DOM steel construction – up to 50% larger than many stock radius bars

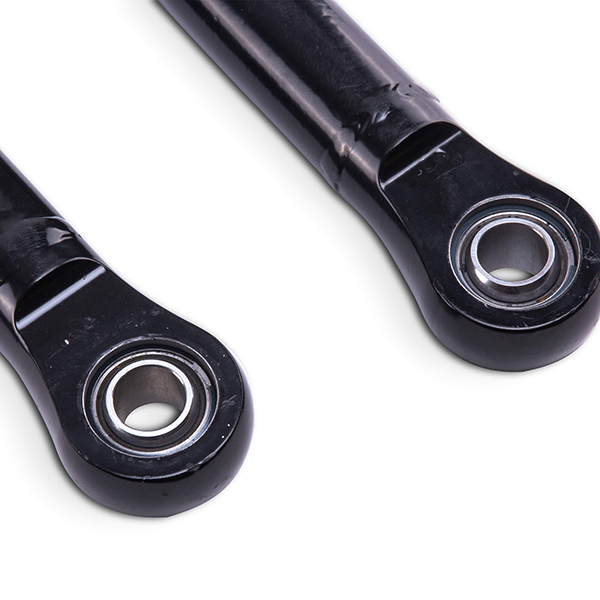

  • Larger extreme duty spherical bearings
  • Massive replaceable heim joints for camber and toe adjustability without sacrificing strength
  • Massive replaceable Teflon lined spherical bearings
  • Heim and spherical bearings are larger
  • Added ground clearance over stock lower radius bar
  • Polyurethane bushings to eliminate excess movement
  • Simple bolt-on kit
  • Powder coated
  • Step by step instructions complete with multi-images for a quick install
  • Limited Lifetime Warranty (Excludes wearable items like bearings, cones, and heim joints)
2016 Polaris RZR XP 1000 EPS
2016 Polaris RZR XP 1000 High Lifter Edition
2016 Polaris RZR XP Turbo EPS
2016 Polaris RZR XP 4 1000 EPS
2016 Polaris RZR XP 4 Turbo EPS
2016 Polaris RZR XP 4 1000 High Lifter Edition
2022 Polaris RZR RS1
2022 Polaris RZR XP 1000 Sport
2022 Polaris RZR XP 1000 Premium
2022 Polaris RZR XP 1000 Trails and Rocks Edition
2022 Polaris RZR XP 1000 High Lifter Edition
2022 Polaris RZR XP 4 1000 Sport
2022 Polaris RZR XP 4 1000 Premium
2022 Polaris RZR XP 4 1000 High Lifter Edition
2023 Polaris RZR XP 1000 Sport
2023 Polaris RZR XP 1000 Premium
2023 Polaris RZR XP 1000 Ultimate
2023 Polaris RZR XP 4 1000 Sport
2023 Polaris RZR XP 4 1000 Premium
2023 Polaris RZR XP 4 1000 Ultimate
2017 Polaris RZR XP 1000 EPS Ride Command Edition
2014 Polaris RZR XP 1000 EPS
2014 Polaris RZR XP 4 1000 EPS
2015 Polaris RZR XP 1000 EPS
2015 Polaris RZR XP 1000 High Lifter Edition
2015 Polaris RZR XP 4 1000 EPS
2017 Polaris RZR XP 4 1000 EPS
2017 Polaris RZR XP 1000 EPS
2017 Polaris RZR XP 1000 High Lifter Edition
2017 Polaris RZR XP Turbo EPS
2017 Polaris RZR XP 4 Turbo EPS
2018 Polaris RZR XP 1000 EPS
2018 Polaris RZR XP 1000 High Lifter Edition
2018 Polaris RZR XP 1000 Ride Command Edition
2018 Polaris RZR XP 1000 Trails and Rocks Edition
2018 Polaris RZR XP 4 1000 EPS
2018 Polaris RZR XP 4 1000 High Lifter Edition
2018 Polaris RZR XP 4 1000 Ride Command Edition
2018 Polaris RZR XP Turbo EPS Dynamix Edition
2018 Polaris RZR XP Turbo EPS
2018 Polaris RZR XP 4 Turbo EPS
2018 Polaris RZR XP Turbo EPS Fox Edition
2018 Polaris RZR XP 4 Turbo EPS Fox Edition
2018 Polaris RZR RS1 EPS
2019 Polaris RZR RS1 EPS
2019 Polaris RZR XP 1000 EPS
2019 Polaris RZR XP 1000 High Lifter Edition
2019 Polaris RZR XP 1000 EPS Ride Command Edition
2019 Polaris RZR XP 1000 Trails and Rocks Edition
2019 Polaris RZR XP 1000 EPS Dynamix Edition
2019 Polaris RZR XP 4 1000 EPS
2019 Polaris RZR XP 4 1000 High Lifter Edition
2019 Polaris RZR XP 4 1000 EPS Ride Command Edition
2019 Polaris RZR XP Turbo EPS
2019 Polaris RZR XP Turbo EPS Dynamix Edition
2019 Polaris RZR XP 4 Turbo EPS
2019 Polaris RZR XP 4 Turbo EPS Dynamix Edition
2019 Polaris RZR XP 4 1000 EPS Dynamix Edition
2020 Polaris RZR RS1 Premium
2020 Polaris RZR XP 1000
2020 Polaris RZR XP 1000 Premium
2020 Polaris RZR XP 1000 Limited Edition
2020 Polaris RZR XP 1000 High Lifter Edition
2020 Polaris RZR XP 4 1000 High Lifter Edition
2020 Polaris RZR XP 1000 Trails and Rocks Edition
2020 Polaris RZR XP 4 1000
2020 Polaris RZR XP 4 1000 Premium
2020 Polaris RZR XP 4 1000 Limited Edition
2020 Polaris RZR XP Turbo
2020 Polaris RZR XP 4 Turbo EPS
2021 Polaris RZR RS1 Premium
2021 Polaris RZR XP 1000 Sport
2021 Polaris RZR XP 1000 Premium
2021 Polaris RZR XP 1000 Trails and Rocks Edition
2021 Polaris RZR XP 1000 High Lifter Edition
2021 Polaris RZR XP 4 1000 Sport
2021 Polaris RZR XP 4 1000 Premium
2021 Polaris RZR XP 4 1000 High Lifter Edition
2021 Polaris RZR XP Turbo
