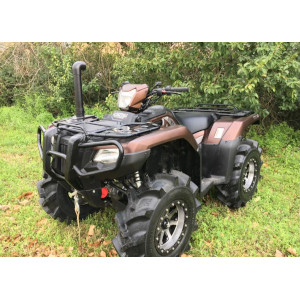

Triangle ATV Honda Foreman / Rubicon 520 Snorkel Kit

  • SKU:  SNORKIT-HONDA-15-FRMN
  • Category: Snorkels
  • Brand: Triangle ATV
  • Summary: This Snorkit provides protection while maintaining a professional, factory looking kit designed specifically for your ATV model. This is achieved by venting the vital systems into higher, safer location on the Foreman/Rubicon 520 as well as explaining sealing procedures to protect your engine, crankcase, front differential, rear differential, air box, and electrical wiring harness. This kit was developed using a 2” riser setup with a fabricated steel riser plate to hold the riser firmly in position.
  • Weight: 9.000000
  • Length: 20.000000
  • Width: 6.000000
  • Height: 14.000000
  • 260.95 USD$260.95

Special Order

Great care has been taken to find the best quality parts to achieve superior performance from this Snorkit. During the design and testing phase of this kit, the snorkel experts at Triangle ATV test air flow requirements for the air box to ensure the air flow meets or exceeds the factory requirements so your ATV will perform at its optimum level. With this kit you will find all the necessary parts and instructions to protect vital systems including:

  • Air box
  • Differentials
  • Crankcase
  • Coolant Overflow bottle
  • Electrical components

    Some of the features incorporated into this model of Snorkit include:

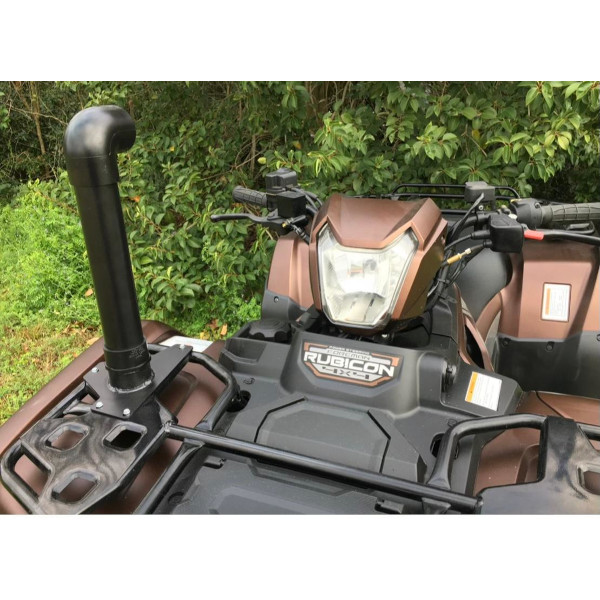

  • 2" Sch. 40 PVC Riser
  • Custom fabricated steel riser mounting plate
  • Multilayer, coextruded, polyethylene snorkel hose with a wire reinforcing coil (LIFE TIME WARRANTY)
  • All necessary vent bellows to allow for air expansion and contraction on differentials.
  • All items necessary to help protect vital electrical components on the ATV and detailed video instructions showing how to apply them.
  • Crankcase vent reroute system to help prevent water intrusion into engine oil (milking).
  • Extended carburetor vent line, required on carbureted versions only

    All steel plates are designed using the latest CAD systems and cut using Professional CNC WaterJet technology. Triangle ATV's riser plate designs are the highest quality products in the ATV/UTV snorkel industry, second to none. With our kit you will NOT be mounting your riser systems with zip ties.

    The Snorkit comes with a detailed instructional video which walks through each aspect of the installation process. It should be noted that this kit requires trimming of the factory plastic in order to achieve installation. As with all Snorkits this purchase will come with the full technical support of the snorkel experts at Triangle ATV! The price Difference is in the Quality.This Snorkit provides protection while maintaining a professional, factory looking kit designed specifically for your ATV model. This is achieved by venting the vital systems into higher, safer location on the Foreman/Rubicon 520 as well as explaining sealing procedures to protect your engine, crankcase, front differential, rear differential, air box, and electrical wiring harness. This kit was developed using a 2" riser setup with a fabricated steel riser plate to hold the riser firmly in position.

2022 Honda Foreman 520 4x4
2022 Honda Foreman 520 EPS 4x4
2022 Honda Foreman 520 ES EPS 4x4
2022 Honda Rubicon 520 DCT
2022 Honda Rubicon 520 DCT EPS
2022 Honda Rubicon 520 DCT EPS Deluxe
2022 Honda Rubicon 520 EPS
2023 Honda Foreman 520 4x4
2023 Honda Foreman 520 EPS 4x4
2023 Honda Foreman 520 ES EPS 4x4
2023 Honda Rubicon 520 DCT
2023 Honda Rubicon 520 DCT EPS
2023 Honda Rubicon 520 DCT EPS Deluxe
2023 Honda Rubicon 520 EPS
2020 Honda Foreman 520 4x4
2020 Honda Foreman 520 EPS 4x4
2020 Honda Foreman 520 ES EPS 4x4
2020 Honda Rubicon 520 EPS
2020 Honda Rubicon 520 DCT
2020 Honda Rubicon 520 DCT EPS
2020 Honda Rubicon 520 DCT EPS Deluxe
2021 Honda Foreman 520 4x4
2021 Honda Foreman 520 EPS 4x4
2021 Honda Foreman 520 ES EPS 4x4
2021 Honda Rubicon 520 EPS
2021 Honda Rubicon 520 DCT
2021 Honda Rubicon 520 DCT EPS
2021 Honda Rubicon 520 DCT EPS Deluxe

Product Ratings and Reviews

Add a Review

0 out of 5 stars
Be the first to review this product.

Lifetime Warranty to the Original Purchaser

Please ensure fitment before purchase. There are NO returns or refunds on ANY brand of snorkel.
