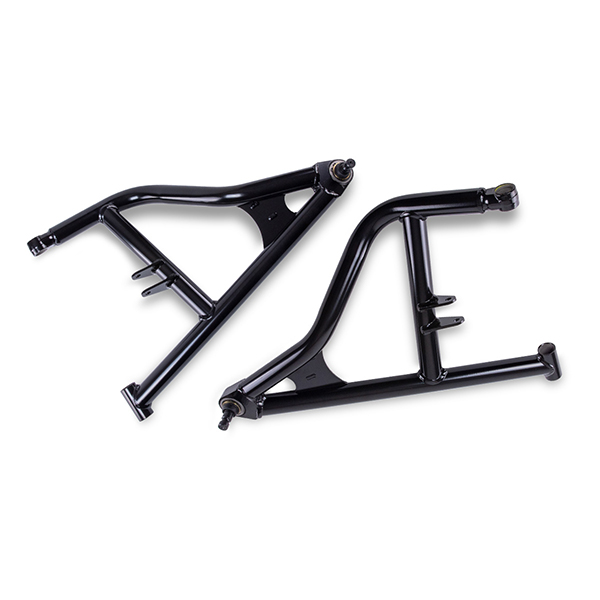

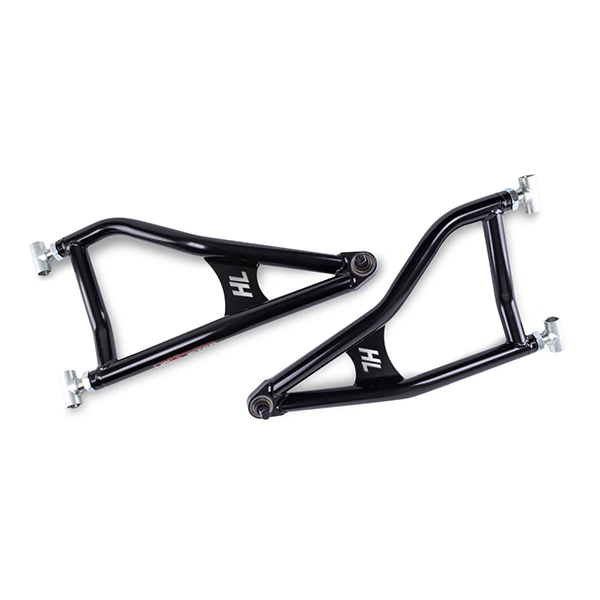

APEXX Front Forward Upper & Lower Control Arms Polaris RZR XP 1000

This item qualifies for Free Shipping
  • HDFFA-RZR1-1-*
  • Category: APEXX Control Arms
  • Brand: High Lifter
  • Summary: All new High Lifter APEXX Control Arms are stronger, adjustable and engineered for the most punishing terrain with 1.75" of additional ground clearance and raked forward 1.5". Push your Polaris RZR to the limits and tackle obstacles you couldn't before! Optional preinstalled ball joints.
  • Weight: 65
  • Length: 26
  • Width: 15
  • Height: 12

Features

  • Adjustable heat-treated collars for camber adjustability with a 1" thread
  • Raked forward 1.5"
  • Over 3 degrees of camber adjustment in each direction
  • Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible
  • Ladder bar compatible with the 1.5" ID clamps
  • Extreme duty 1.5" x .120" DOM steel construction
  • Up to 2" of added ground clearance compared to OEM lower arm
  • Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps
  • Optimized sway bar linkage angles
  • Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
  • Powder Coated

Heavy Duty Strength
High Lifter's new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5" DOM with .188 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability

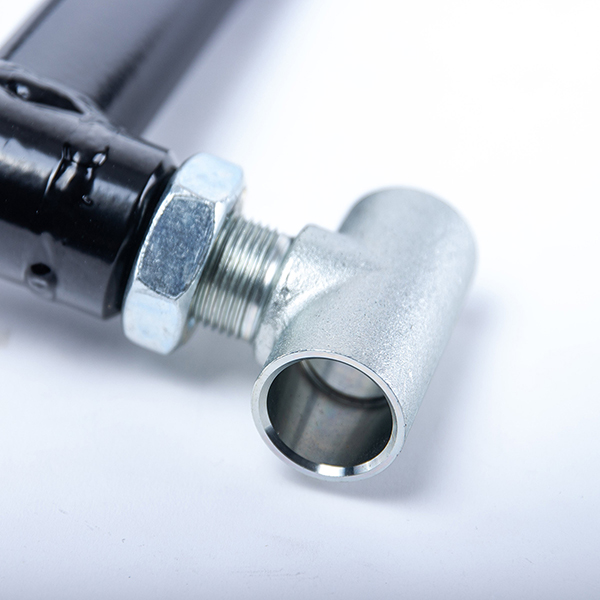

The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8" of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you're adding to your ride. This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance
We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75" of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We've improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

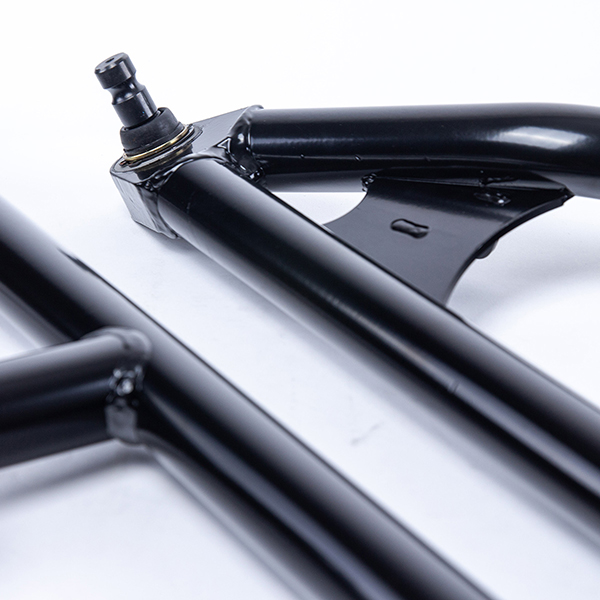

Reinforced Ball Joints Brackets
Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or "egging" of the mounting bracket.

Tire Fitment: Up to 34.5"
Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

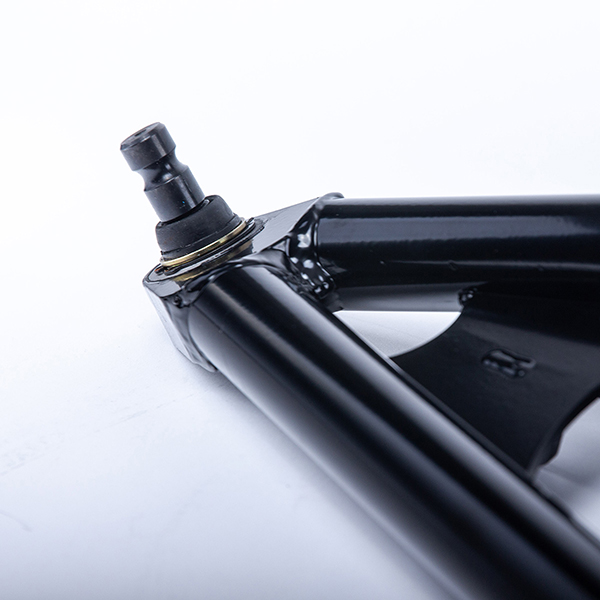

Optional Preinstalled Ball Joints
High Lifter's service team uses a hydraulic press to install the ball joint with the correct pressure and alignment, also making sure the clip is fully seated and secured. Purchasing control arms with the ball joints already installed adds to easy installation and prevents damage due to improper installation, which is not covered by High Lifter's Lifetime Warranty.
The ball joints preinstalled in this kit are BJP-4.

2022 Polaris RZR XP 1000 Sport
2022 Polaris RZR XP 1000 Premium
2022 Polaris RZR XP 1000 Trails and Rocks Edition
2022 Polaris RZR XP 1000 High Lifter Edition
2022 Polaris RZR XP 4 1000 Sport
2022 Polaris RZR XP 4 1000 Premium
2022 Polaris RZR XP 4 1000 High Lifter Edition
2023 Polaris RZR XP 1000 Sport
2023 Polaris RZR XP 1000 Premium
2023 Polaris RZR XP 1000 Ultimate
2023 Polaris RZR XP 4 1000 Sport
2023 Polaris RZR XP 4 1000 Premium
2023 Polaris RZR XP 4 1000 Ultimate
2017 Polaris RZR XP 1000 EPS Ride Command Edition
2017 Polaris RZR XP 4 1000 High Lifter Edition
2017 Polaris RZR XP 4 1000 EPS
2017 Polaris RZR XP 1000 EPS
2017 Polaris RZR XP 1000 High Lifter Edition
2017 Polaris RZR XP Turbo EPS
2017 Polaris RZR XP 4 Turbo EPS
2018 Polaris RZR XP 1000 EPS
2018 Polaris RZR XP 1000 High Lifter Edition
2018 Polaris RZR XP 1000 Ride Command Edition
2018 Polaris RZR XP 1000 Trails and Rocks Edition
2018 Polaris RZR XP 4 1000 EPS
2018 Polaris RZR XP 4 1000 High Lifter Edition
2018 Polaris RZR XP 4 1000 Ride Command Edition
2018 Polaris RZR XP Turbo EPS Dynamix Edition
2018 Polaris RZR XP Turbo EPS
2018 Polaris RZR XP 4 Turbo EPS
2018 Polaris RZR XP Turbo EPS Fox Edition
2018 Polaris RZR XP 4 Turbo EPS Fox Edition
2019 Polaris RZR XP 1000 EPS
2019 Polaris RZR XP 1000 High Lifter Edition
2019 Polaris RZR XP 1000 EPS Ride Command Edition
2019 Polaris RZR XP 1000 Trails and Rocks Edition
2019 Polaris RZR XP 1000 EPS Dynamix Edition
2019 Polaris RZR XP 4 1000 EPS
2019 Polaris RZR XP 4 1000 High Lifter Edition
2019 Polaris RZR XP 4 1000 EPS Ride Command Edition
2019 Polaris RZR XP Turbo EPS
2019 Polaris RZR XP Turbo EPS Dynamix Edition
2019 Polaris RZR XP 4 Turbo EPS
2019 Polaris RZR XP 4 Turbo EPS Dynamix Edition
2019 Polaris RZR XP 4 1000 EPS Dynamix Edition
2020 Polaris RZR XP 1000
2020 Polaris RZR XP 1000 Premium
2020 Polaris RZR XP 1000 Limited Edition
2020 Polaris RZR XP 1000 High Lifter Edition
2020 Polaris RZR XP 4 1000 High Lifter Edition
2020 Polaris RZR XP 1000 Trails and Rocks Edition
2020 Polaris RZR XP 4 1000
2020 Polaris RZR XP 4 1000 Premium
2020 Polaris RZR XP 4 1000 Limited Edition
2020 Polaris RZR XP Turbo
2020 Polaris RZR XP 4 Turbo EPS
2020 Polaris Sportsman Touring 570 Premium
2020 Polaris Sportsman 6x6 570
2021 Polaris RZR XP 1000 Sport
2021 Polaris RZR XP 1000 Premium
2021 Polaris RZR XP 1000 Trails and Rocks Edition
2021 Polaris RZR XP 1000 High Lifter Edition
2021 Polaris RZR XP 4 1000 Sport
2021 Polaris RZR XP 4 1000 Premium
2021 Polaris RZR XP 4 1000 High Lifter Edition
2021 Polaris RZR XP Turbo
2021 Polaris RZR XP 4 Turbo EPS

Product Ratings and Reviews

Add a Review

5.0 out of 5 stars
  • Friday, October 15, 2021
  • David Risinger
Best arms on the market. Super tough and durable and backed with high lifters warranty. Can’t go wrong with these when adding portals to the mix.

Click here for High Lifter's Limited Lifetime Warranty.

Warning WARNING: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
