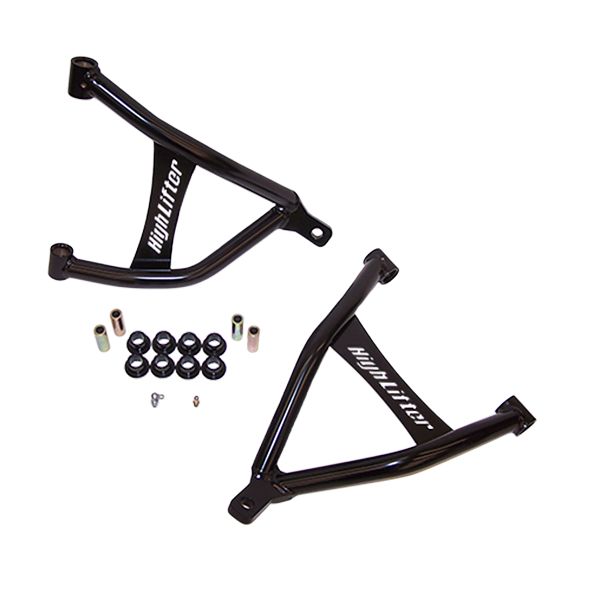

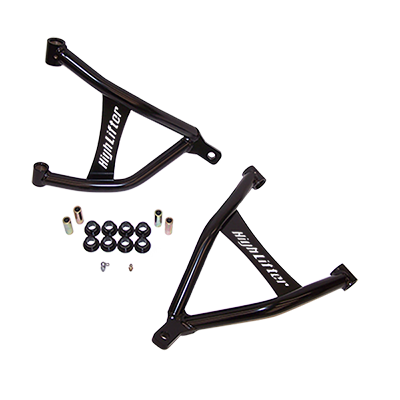

Front Lower Control Arms Honda Foreman, Rancher, Rubicon

This item qualifies for Free Shipping
  • MCFLA-H500-*
  • Category: Control Arms
  • Brand: High Lifter
  • Summary: Whether you ride in deep mud or over rocky trails, the need for stronger control arms with added ground clearance is extremely important. Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter has solved your problem by designing tough control arms, twice as strong as your stock arms, with the added ground clearance you need for all terrains and bigger tires.
  • Weight: 13.33
  • Length: 26
  • Width: 15
  • Height: 7

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Installation is made easy with our step by step and multi-image instructions. During installation, you can use stock bushings and ball joints for easy installation. Even better, High Lifter will install your ball joints before shipping. (See our control arms with preinstalled ball joints.)

Always check for bearings, bushings, ball joints, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • Larger than average stock arms - Crafted from 1 1/16” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms - .120” wall thickness
  • Dual bend design
  • Grease fittings included for most models

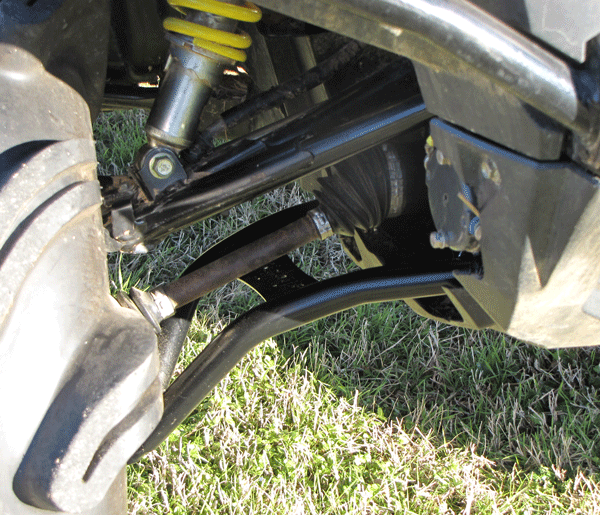

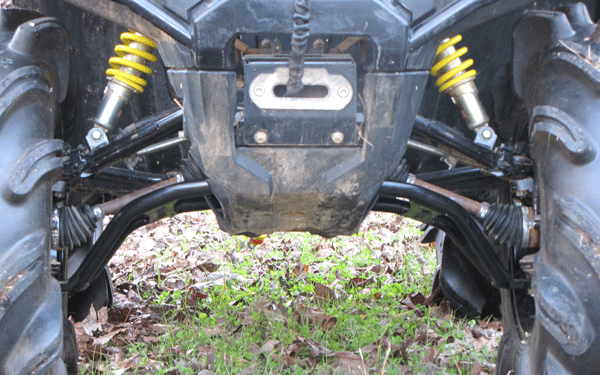

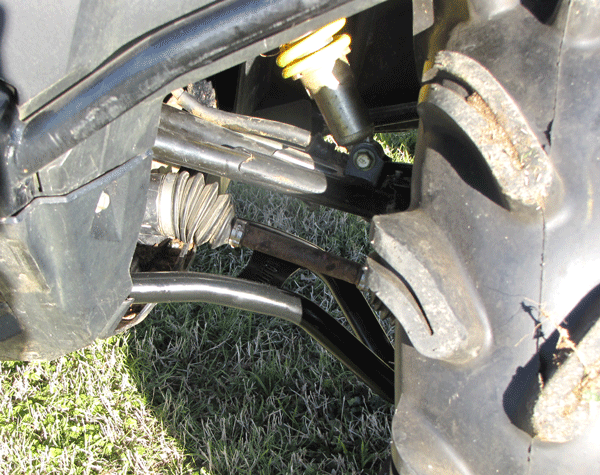

  • Added ground clearance featuring bends that maximize clearance and axle protection

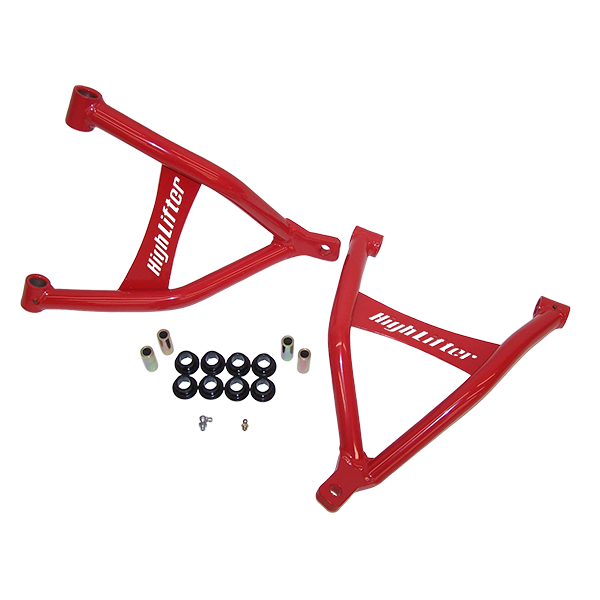

  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty

NOTE: This kit comes with 8 bushings and 4 sleeves.



2016 Honda Rubicon 500 4x4
2016 Honda Rubicon 500 EPS
2016 Honda Rubicon 500 EPS Deluxe
2016 Honda Rubicon 500 DCT
2016 Honda Rubicon 500 DCT EPS Deluxe
2016 Honda Foreman 500 4x4
2016 Honda Foreman 500 ES 4x4
2016 Honda Foreman 500 EPS 4x4
2016 Honda Foreman 500 ES EPS 4x4
2016 Honda Rancher 420 IRS Auto DCT
2016 Honda Rancher 420 IRS Auto DCT EPS
2014 Honda Foreman 500 4x4
2014 Honda Foreman 500 ES 4x4
2014 Honda Foreman 500 ES 4x4 PS
2014 Honda Foreman 500 4x4 PS
2015 Honda Rubicon 500 4x4
2015 Honda Rubicon 500 EPS
2015 Honda Rubicon 500 EPS Deluxe
2015 Honda Rubicon 500 DCT
2015 Honda Rubicon 500 DCT EPS
2015 Honda Rubicon 500 DCT EPS Deluxe
2015 Honda Foreman 500 4x4
2015 Honda Foreman 500 ES 4x4
2015 Honda Foreman 500 EPS 4x4
2015 Honda Foreman 500 ES EPS 4x4
2015 Honda Rancher 420 IRS Auto DCT
2015 Honda Rancher 420 IRS Auto DCT EPS
2017 Honda Rancher 420 IRS Auto DCT
2017 Honda Rancher 420 IRS Auto DCT EPS
2017 Honda Rubicon 500 EPS
2017 Honda Rubicon 500 DCT
2017 Honda Rubicon 500 DCT EPS
2017 Honda Rubicon 500 DCT EPS Deluxe
2017 Honda Foreman 500 4x4
2017 Honda Foreman 500 ES EPS 4x4
2018 Honda Rubicon 500 EPS
2018 Honda Rubicon 500 DCT
2018 Honda Rubicon 500 DCT EPS
2018 Honda Rubicon 500 DCT EPS Deluxe
2018 Honda Rancher 420 IRS Auto DCT
2018 Honda Rancher 420 IRS Auto DCT EPS
2018 Honda Foreman 500 4x4
2018 Honda Foreman 500 ES EPS 4x4
2019 Honda Rancher 420 IRS Auto DCT
2019 Honda Rancher 420 IRS Auto DCT EPS
2019 Honda Foreman 500 4x4
2019 Honda Foreman 500 ES EPS 4x4
2019 Honda Rubicon 500 EPS
2019 Honda Rubicon 500 DCT
2019 Honda Rubicon 500 DCT EPS
2019 Honda Rubicon 500 DCT EPS Deluxe
2020 Honda Rancher 420 IRS Auto DCT
2020 Honda Rancher 420 IRS Auto DCT EPS
2020 Honda Foreman 520 4x4
2020 Honda Foreman 520 EPS 4x4
2020 Honda Foreman 520 ES EPS 4x4
2020 Honda Rubicon 520 EPS
2020 Honda Rubicon 520 DCT
2020 Honda Rubicon 520 DCT EPS
2020 Honda Rubicon 520 DCT EPS Deluxe
2021 Honda Rancher 420 IRS Auto DCT
2021 Honda Rancher 420 IRS Auto DCT EPS
2021 Honda Foreman 520 4x4
2021 Honda Foreman 520 EPS 4x4
2021 Honda Foreman 520 ES EPS 4x4
2021 Honda Rubicon 520 EPS
2021 Honda Rubicon 520 DCT
2021 Honda Rubicon 520 DCT EPS
2021 Honda Rubicon 520 DCT EPS Deluxe

Product Ratings and Reviews

Add a Review

5.0 out of 5 stars
  • Thursday, March 12, 2020
  • Nick Ariail
After having these front arms on for over a month now, I am still highly satisfied with the durability of these arched arms. I love the look of these arms and they give me the look I envisioned when modding my quad. Even though it’s not a big deal, I do wish it had the ends where you could adjust the camber. All in all though, these arms are super high quality and as awesome as they are, I am surprised though that highlifter hasn’t released rear arched arms for the rubicon yet, but I guess only time will tell if they plan on making them or not.
  • Wednesday, May 8, 2019
  • Katelynn B
Super fast shipping! Very detailed and understandable instructions! They look and fit AMAZING on the bike. They definitely hold up to a beating with water wheelies and tough trails ! Gives you alot more ground clearance too! If you've got a Honda, you want these !
  • Wednesday, April 24, 2019
  • Damon bridgmon
I got my arms in very quick and sent them straight to powder coat to match my bike. Bushings were super easy to install. Very detailed instructions,even tho I didnt need them. Fit right in to place with no adjustments or banging. Not only do they look good and give better ground clearance but I'm beyond amazed with the performance of them. They are holding up very well, with water wheelies and bumpy trails. I'd recommend these arms to anybody with a Honda!
  • Friday, April 12, 2019
  • Damon bridgmon
Got mine super fast, really easy to install and just makes the bike look 10× better! Let alone gives me more clearance as well!
